Mobile Conveyor & Ship Loader
We have the ability to design, manufacture & install a variety of mobile conveyor systems whether flat or inclined with a range of Belt types available to us. Mobile conveyor systems are custom-made to meet the specific demands of the client’s needs, the type & volume of material to be handled.
Radial Stacking Conveyors& Fixed Stackers
As you will see Moontain has many types of conveyor for your needs. Radial Stackers stockpile materials slewing between 90° & approximately 360°. Boom angles can be made either fixed or in a luffing motion between +15° to -15°. The conveyor operates at various angles and reduces segregation and degradation.

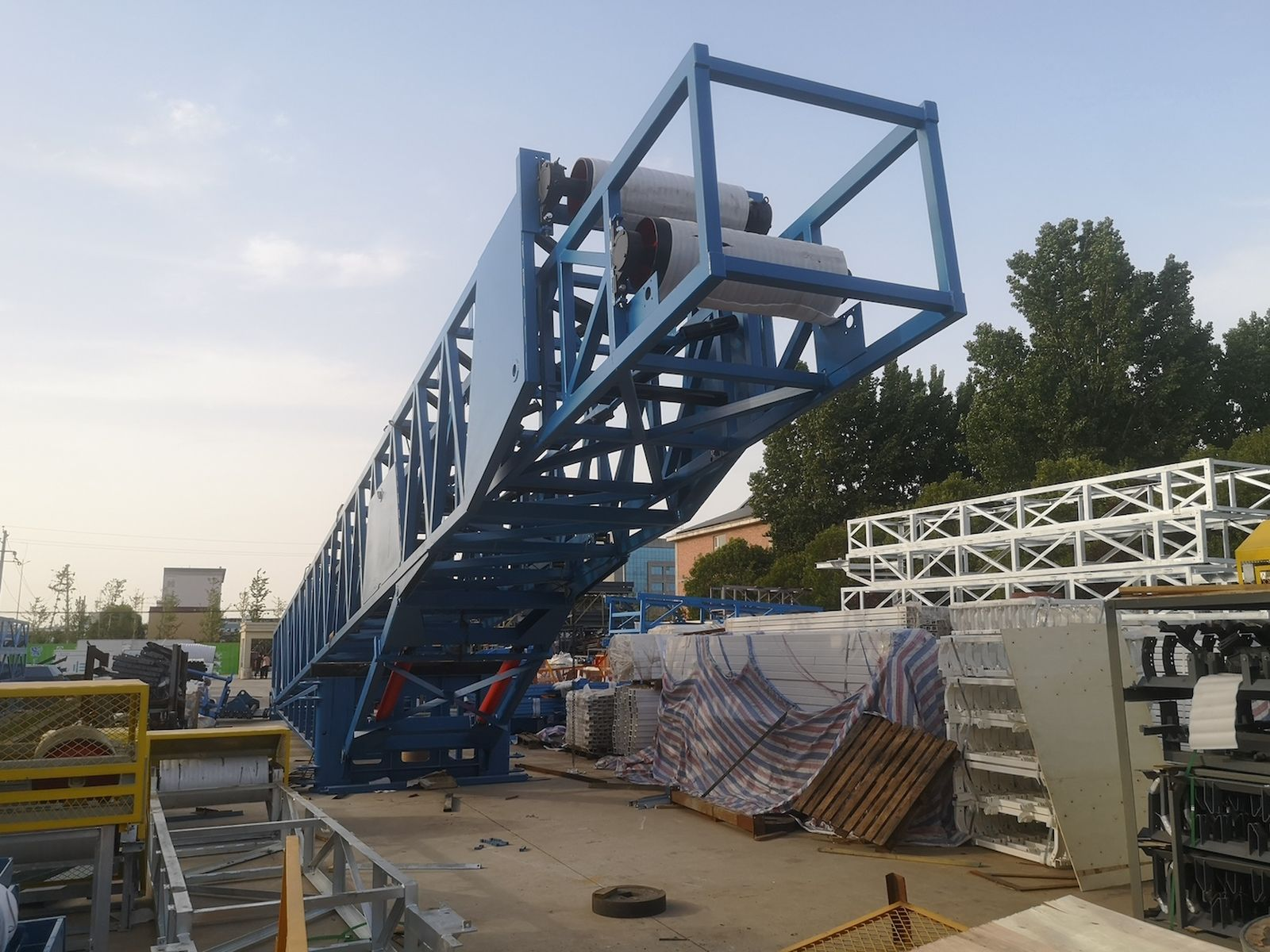

Mobile Radial Telescopic Stacker (TeleStacker)

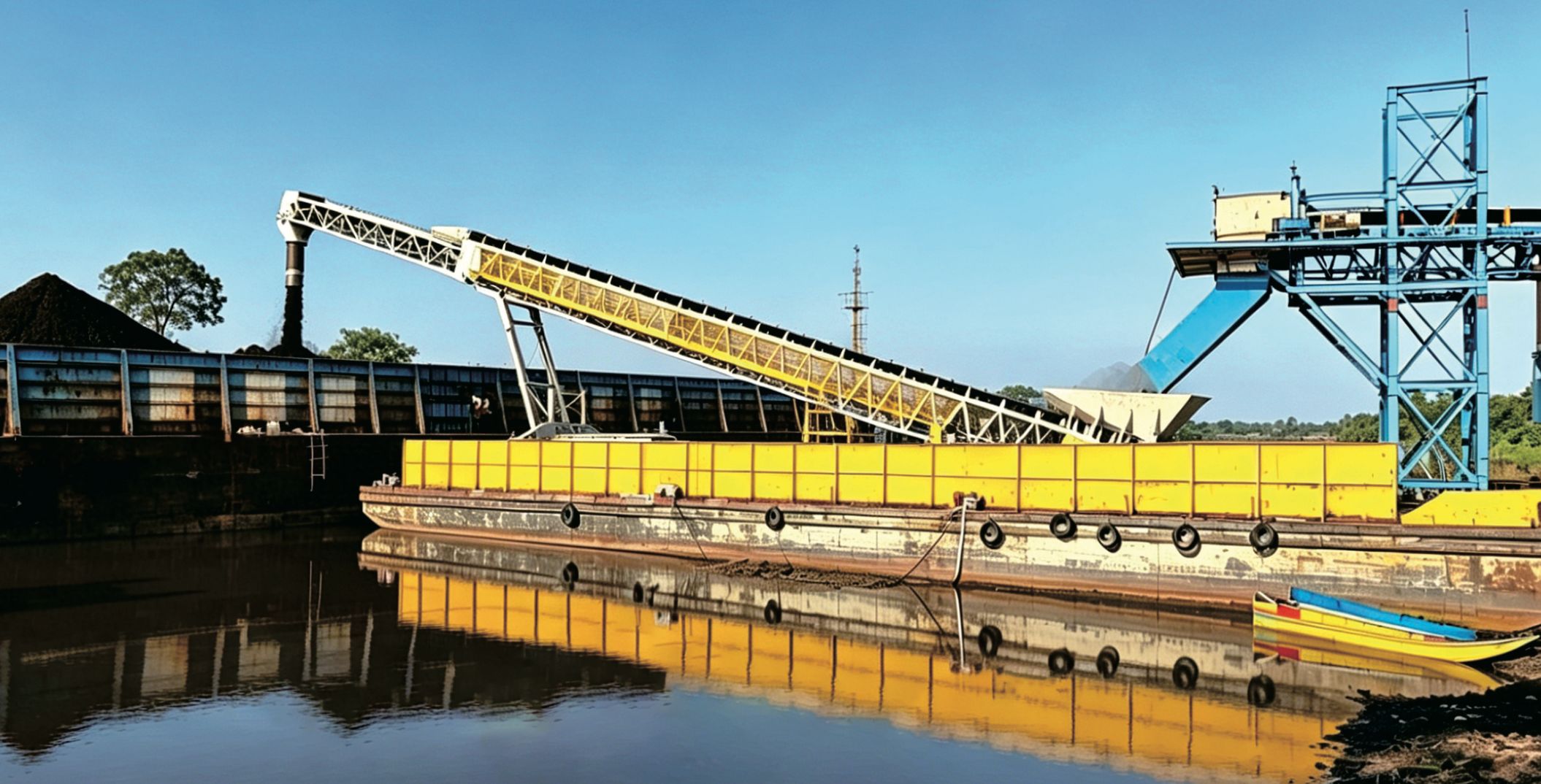

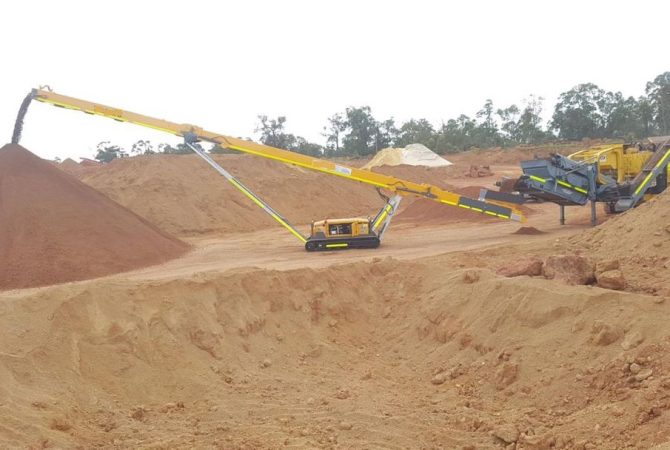

For stockyards, ports and quarries that need to build large stockpiles without a fixed conveyor, Moontain supplies mobile radial telescopic stackers. The telescopic boom extends and retracts while the stacker slews, laying material down in layers instead of dropping it from one fixed point. This builds larger stockpiles on the same footprint, reduces segregation and degradation, and cuts the loader work needed to rehandle the pile, making it one of the most cost-effective ways to stockpile bulk material.
Key Features
- Large stockpile capacity: radial slewing combined with telescopic boom travel creates bigger stockpiles with more live storage.
- Easy relocation: the stacker moves between stockpiles, berths or work faces with minimal set-up time.
- Flexible operation: adjustable boom length and angle suit different materials, pile heights and site layouts.
- Automation: optional automatic stacking control keeps the pile consistent and reduces operator workload.
- High-quality materials: robust structure and components built for long service life in harsh conditions.
- Power options: electric drive from site power or an on-board diesel genset.
- Chassis options: tracked (crawler) or wheeled undercarriage to match ground conditions.
Technical Specifications
| Belt Width | Length | Max. Discharge Height | Capacity |
|---|---|---|---|
| 1000 mm | 33 m | 10 m | 600 t/h |
| 1200 mm | 40 m | 12–14 m | 1,200 t/h |
| 1200 mm | 46 m | 12–14 m | 2,000 t/h |
| 1400 mm | 58 m | 18–20 m | 3,000 t/h |
Capacities are based on limestone with a bulk density of 1.6 t/m³. Other conveyor lengths, belt widths and capacities can be customized; send us your material and site details for a tailored proposal.

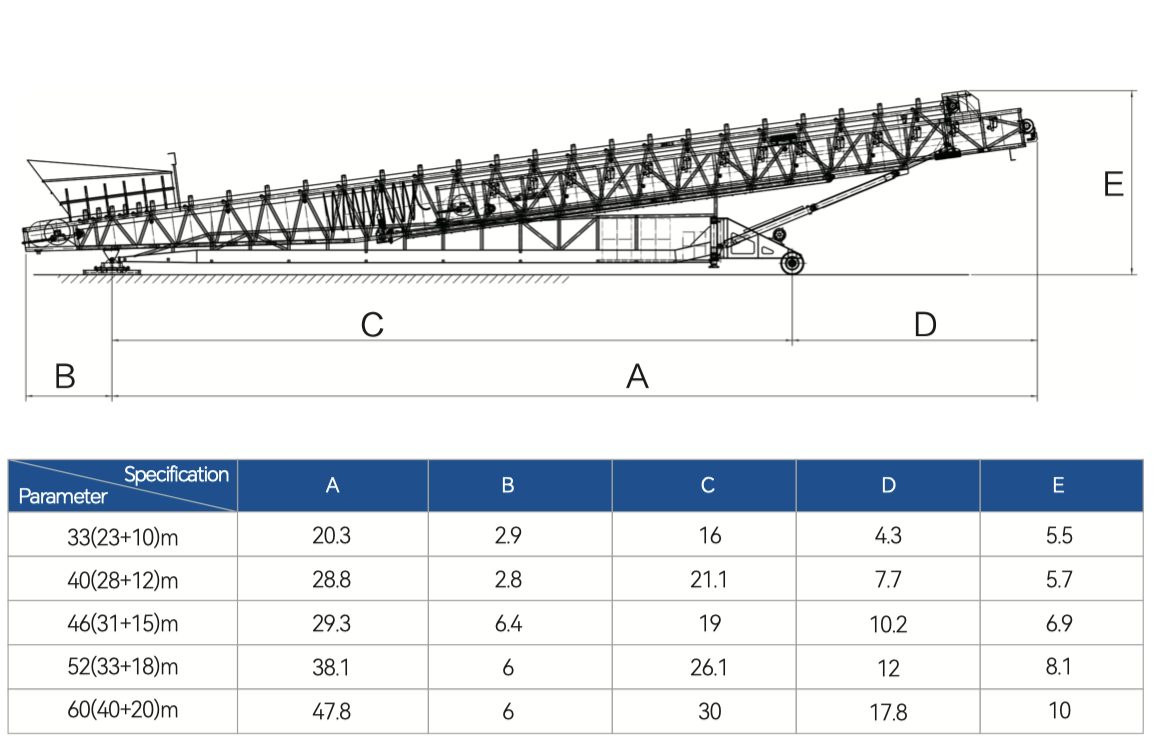

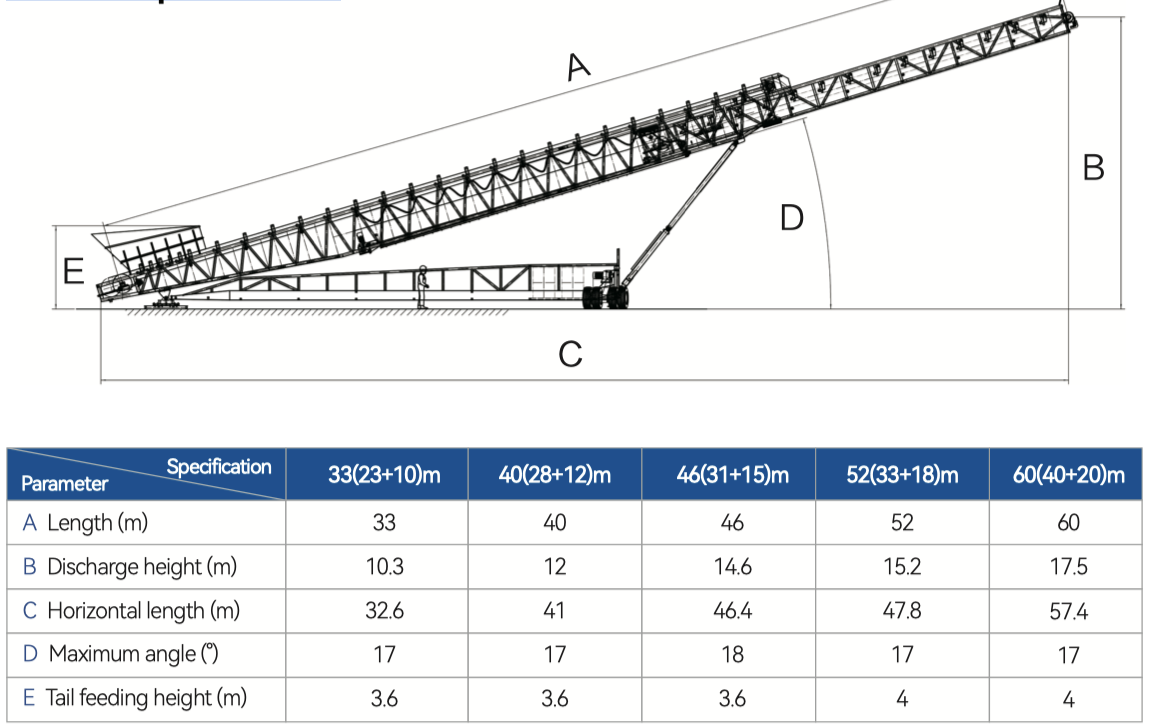

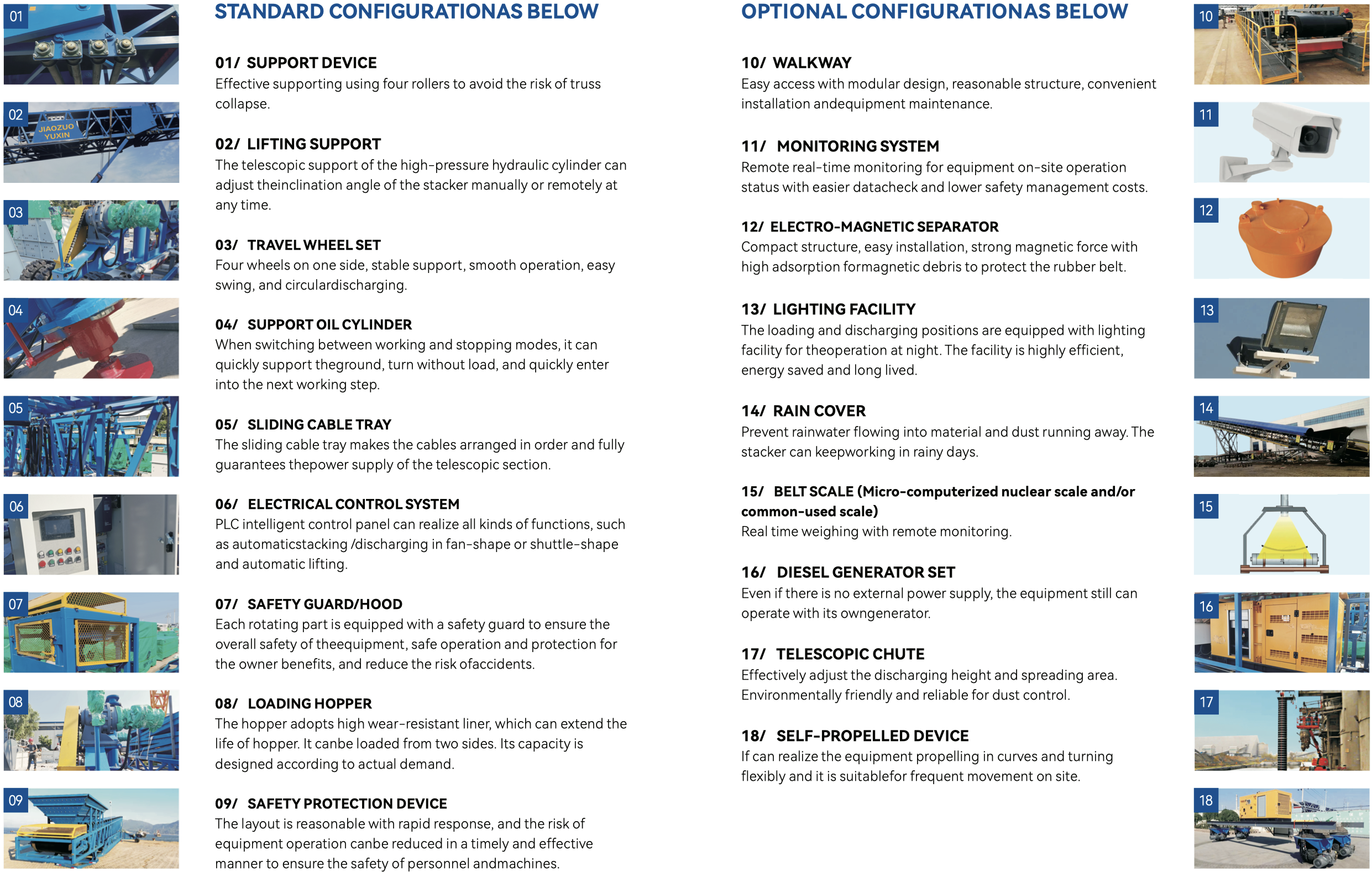

Dimensions and Configurations
The Heap Leaching Plant
The stacker conveyor system will be used to transfer materials/agglomerated ore to the heap leach
pad, and stack the ore prior to heap leaching process. The system consists of 2 parts, namely the grasshopper or jump transfer conveyor, and telescopic radial stacker conveyor.
For more information, pls contact our engineer: [email protected]
